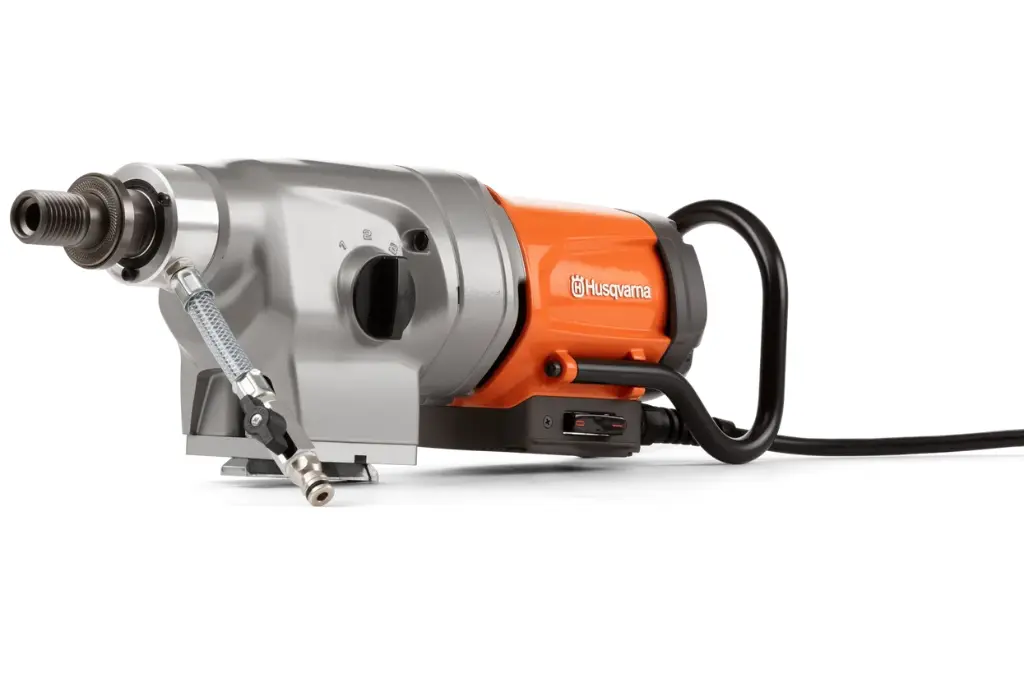

DM 430
DM 430 is a powerful and sturdy electric core drill for medium to heavy core drilling where reliability and high productivity is needed, especially with large diameter core bits. Recommended diameter 100-450 mm. With aluminium motor housing to withstand tough handling and a carrying handle for ergonomic usage and additional impact protection of the drill motor. Equipped with Embedded Connectivity, an enhanced version of Husqvarna Fleet Services™ for data analytics and insights into the health of the machine. Suitable for water evacuation, ventilation, angle drilling , stitch drilling and when you need cut close to corners.
Internal Reference:
970445602
Specifications
| Brand | Husqvarna |
| Coolant | Wet |
| Drill Bit Diameter w/Stand (max) | 18.00 inches |
| Engine Cooling | Air Cooled |
| Frequency | 50-60 Hz |
| Gearbox | 3-speed |
| Oil Capacity | 13.5 fl oz |
| Output Shaft RPM (max) | 800 rpm |
| Phases | 1 ph |
| Power Source | Corded |
| Rated Current | 10/20 A |
| Rated Input Power | 4.29 hp |
| Min Drill Bit Diameter | 4.0 in |
| Guaranteed Sound Power Level | 112 dB(A) |
| Measured Sound Power Level | 110.0 dB(A) |
| Sound Pressure Level at Operator's Ear | 92.00 dB(A) |
| Spindle Speed Unloaded Gear 1 | 250 rpm |
| Spindle Speed Unloaded Gear 2 | 510.0 rpm |
| Spindle Speed Unloaded Gear 3 | 800.00 rpm |
| Outer Spindle Thread | 1 1/4"-7 UNC |
| Voltage | 100-120 V |
| Water Connector | G 1 /4" |
| Water Pressure (max) | 43.5 psi |
