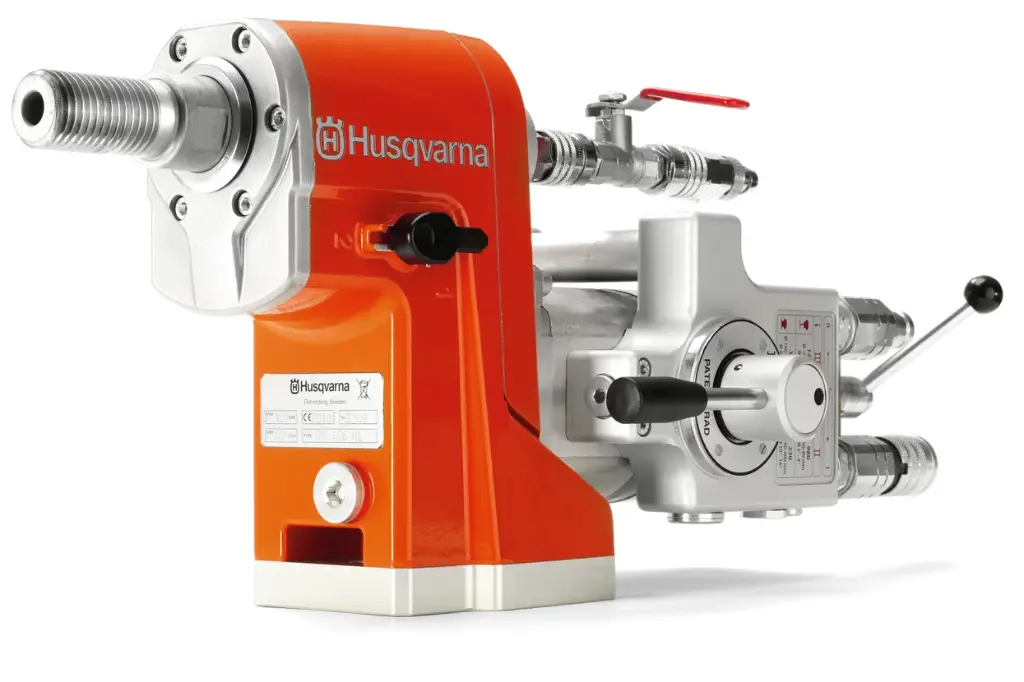

DM 406 H
DM 406 H is our powerful hydraulic core drill for drilling holes up to 24 in. diameter. An excellent choice for heavy-duty core drilling applications where high production rates are needed, especially with large diameter core bits. The hydraulic speed can be changed while drilling, making the DM 406 H efficient and very easy to use. Suitable for large and deep holes, waste evacuation pipes and stitch drilling in a variety of materials including reinforced concrete.
Internal Reference:
965158207
Specifications
| Brand | Husqvarna |
| Output Shaft RPM (max) | 1400 rpm |
| Measured Sound Power Level | 112.0 dB(A) |
| Drill Bit Diameter Handheld (max) | 4.00 inches |
| Gearbox | 2-Speed |
| Power Source | Hydraulic |
| Min Drill Bit Diameter | 1.97 in |
| Guaranteed Sound Power Level | 113 dB(A) |
| Sound Pressure Level at Operator's Ear | 98.0 dB(A) |
| Spindle Speed Unloaded Gear 1 | 340 rpm |
| Spindle Speed Unloaded Gear 2 | 1400.0 rpm |
| Outer Spindle Thread | 1 1/4"-7 UNC |
| Water Connector | R 1/2" |
| Water Pressure (max) | 116 psi |
| Coolant | Wet |
| Oil Capacity | 10 fl oz |
| Phases | 1 ph |
| Rated Current | 15 A |
| Rated Input Power | 12.5 hp |
| Voltage | 100-120 V |
| Drill Bit Diameter w/Stand (max) | 25.6 inches |
| Hydraulic Oil Flow | 10 gal/min |
| Max Hydraulic Pressure | 2030 psi |
